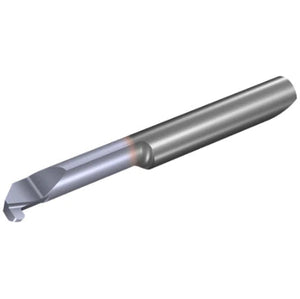

Vargus Microscope Round Grooving Insert - M552GRR100L20RVBX - 2.0mm Groove Width - 20mm Reach - 5.2mm Min Bore Dia (5mm Shank)
044-00011
M552GRR100L20RVBX
Microscope Round Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M552GRR100L20RVBX |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.2 |
| Groove Width W±0.025 | 2.0 |
| t max | 1 |
| L1 | 20 |
| F | 2.45 |
| Rad | 1 |
| a | 4.95 |
| b | 3.7 |
| L2 ref* | 23.15 |
| L ref | 46 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
