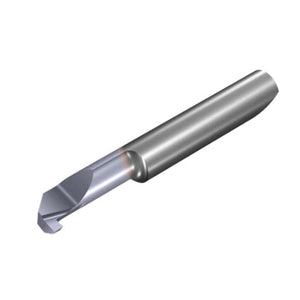

Vargus Microscope Square Grooving Insert - MS442GSW079L25RVBX - 0.79mm Groove Width - 25mm Reach - 4.2mm Min Bore Dia (4mm Shank)
044-00153
MS442GSW079L25RVBX
Microscope Square Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MS442GSW079L25RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
4.2 |
| Groove Width W±0.025 | 0.79 |
| t max | 0.8 |
| L1 | 25 |
| F | 1.96 |
| Rad | 0.1 |
| a | 3.96 |
| b | 2.9 |
| L2 ref* | 28.7 |
| L ref | 45.7 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
