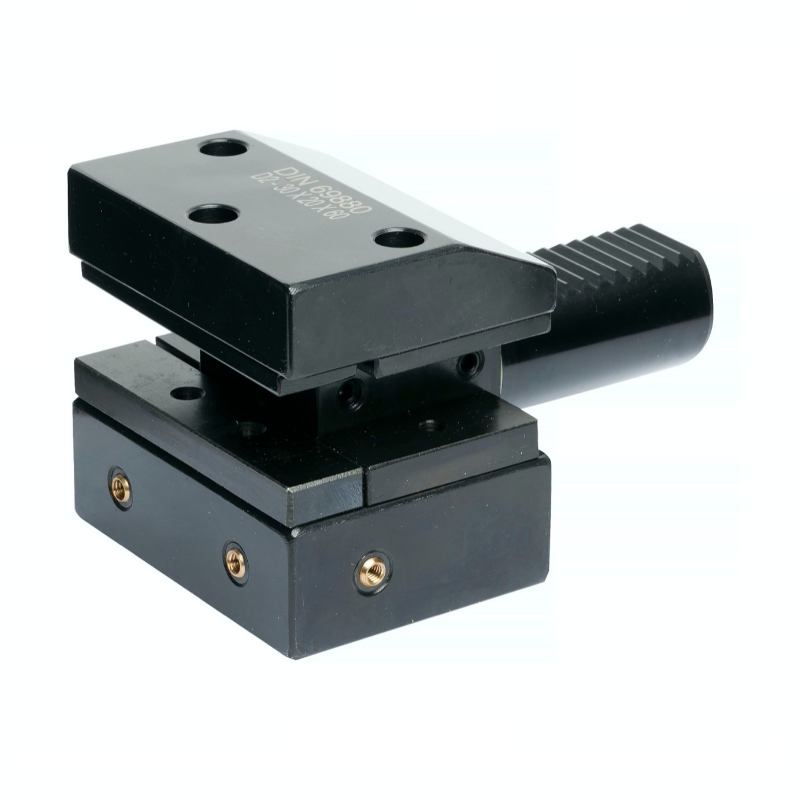

VDI Static Tooling D2 Multiple Square Seat Holders VDI50 D2 - 32 x 85

33245

Omega Products


  • VDI - DIN 69880 (ISO 10889)

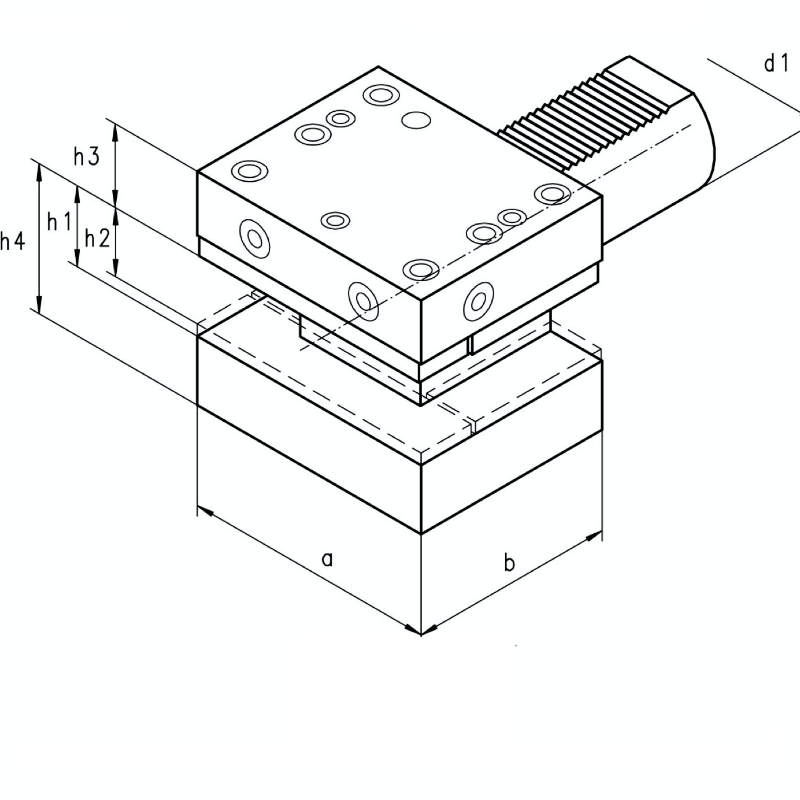

Description

d1

a

b

h1

h2

h3

h4

VDI50 D2 - 32 x 85

50

105

85

32

25

 60

 50
33245 VDI STATIC TOOLING D2 MULTIPLE SQUARE SEAT HOLDERS VDI50 D2 - 32 X 85
