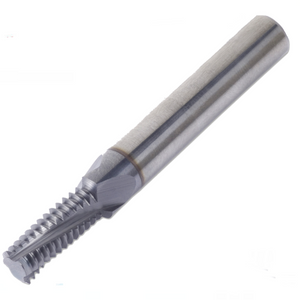

BSP 3/8"x19 2xDo - 19TPI Whitworth (BSP) External/Internal Carbide Thread Mill - Vardex Helical
101-00057
Thread Milling TM Solid Carbide Helical EX/IN 19 TPI W Shank Diameter 16 (mm) Cutting Diameter 13.4 (mm) Tool Overhang 33.4 (mm) VTH Grade
- For Internal and External Machining
- For BSP threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | Whitworth (BSP) |
| Pitch | 19 TPI |
| EXT/INT | EX/IN |
| Coolant | No |
| L | 33.4mm |
| L1 | 33.4mm |
| Le | 33.4mm |
| Cutting Dia | 13.4mm |
| Z | 4 |
| Zt | 24 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 16mm |
| Description | H16134L33-EI19BSPTMVTH |
