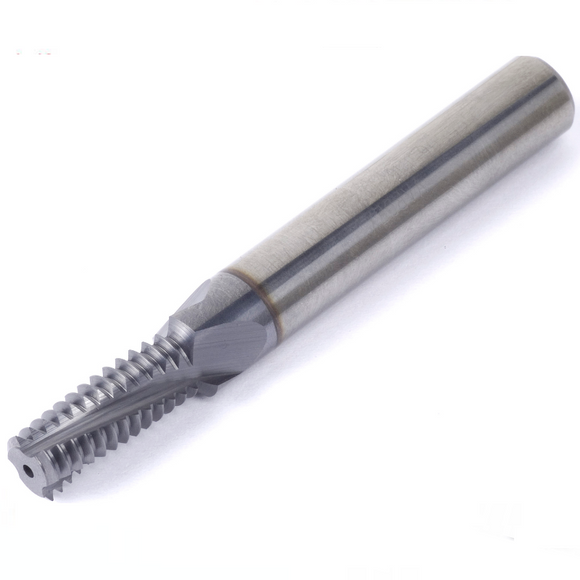

WHIT / BSP 3/8"x 19-2xDo- 19 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00125
Thread Milling TM Solid Carbide HeliCool EX/IN 19 TPI W Shank Diameter 16 (mm) Cutting Diameter 14.5 (mm) Tool Overhang 34.09 (mm) VTH Grade
- For Internal and EXTERNAL Machining
- For WHIT threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | WHIT / BSP |
| Pitch | 19TPI |
| EXT/INT | EX/ IN |
| Coolant | Yes |
| L | 34.09mm |
| L1 | 34.09mm |
| Le | 34.09mm |
| Cut Dia | 14.5mm |
| Z | 4 |
| Zt | 25 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC16145L34-EI19BSPTMVTH |
| Shank Dia | 16mm |
104-00125 WHIT / BSP 3/8"X 19-2XDO- 19 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
