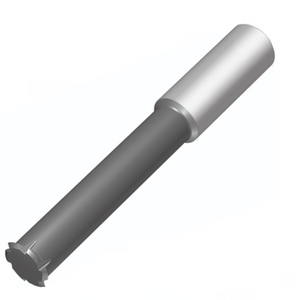

0.5-0.8 mm / 52-36 TPI Pitch Partial 60 D1T Deep Hole Threading Carbide Thread Mill - Vardex Helical

103-00017

EW Equipment

  • £80.00

Only 5 left!

Thread Milling TM Solid Carbide Deep Threading IN 0.5-0.8 mm 32-56 TPI Partial 60 Shank Diameter 4 (mm) Cutting Diameter 3.9 (mm) Tool Overhang 16 (mm) VTH Grade
  • For Internal Machining
  • For Partial 60 threads
  • Made from Micrograin Solid Carbide
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
  • TiCN coating for longer tool life
  • Used for Deep Hole Threading

Thread Standard Partial 60
Pitch 0.5-0.8 mm/52-36 TPI
EXT/INT IN
Coolant No
L 16mm
L1 16.0mm
Le 0.5mm
Cutting Dia 3.9mm
Z 4
Zt 1
Grade VTH
Coating TiCN
Shank Dia 4mm
Description D1T04390L160-ITA60TMVTH
