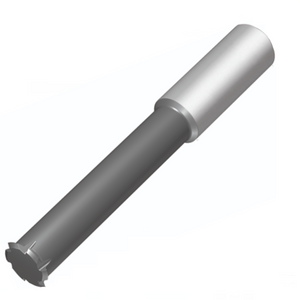

0.5-1.0 mm / 28-27 TPI Pitch Partial 60 D1T Deep Hole Threading Carbide Thread Mill - Vardex Helical
103-00018Thread Milling TM Solid Carbide Deep Threading IN 0.5-1.0 mm 24-56 TPI Partial 60 Shank Diameter 6 (mm) Cutting Diameter 4.85 (mm) Tool Overhang 20 (mm) VTH Grade
- For Internal Machining
- For Partial 60 threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
- Used for Deep Hole Threading
Thread Standard | Partial 60 |
Pitch | 0.5-1.0 mm/28-27 TPI |
EXT/INT | IN |
Coolant | No |
L | 20mm |
L1 | 20.0mm |
Le | 0.5mm |
Cutting Dia | 4.85mm |
Z | 5 |
Zt | 1 |
Grade | VTH |
Coating | TiCN |
Shank Dia | 6mm |
Description |
D1T06485L200-ITB60TMVTH
|
