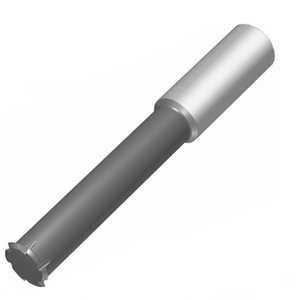

1.0-1.75 mm / 24-14 TPI Pitch (12mm Shank) Partial 60 D1T Deep Hole Threading Carbide Thread Mill  - Vardex Helical - Precision Engineering Tools EW Equipment

1.0-1.75 mm / 24-14 TPI Pitch (12mm Shank) Partial 60 D1T Deep Hole Threading Carbide Thread Mill - Vardex Helical

103-00022

EW Equipment

  • £110.00

Only 5 left!

Thread Milling TM Solid Carbide Deep Threading IN 1.0-1.75 mm 14-24 TPI Partial 60 Shank Diameter 12 (mm) Cutting Diameter 11.9 (mm) Tool Overhang 45 (mm) VTH Grade
  • For Internal Machining
  • For Partial 60 threads
  • Made from Micrograin Solid Carbide
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
  • TiCN coating for longer tool life
  • Used for Deep Hole Threading

Thread Standard Partial 60
Pitch 1.0-1.75 mm/24-14 TPI
EXT/INT IN
Coolant No
L 45mm
L1 45.0mm
Le 1mm
Cutting Dia 11.9mm
Z 6
Zt 1
Grade VTH
Coating TiCN
Shank Dia 12mm
Description
D1T12119L450-ITD60TMVTH
