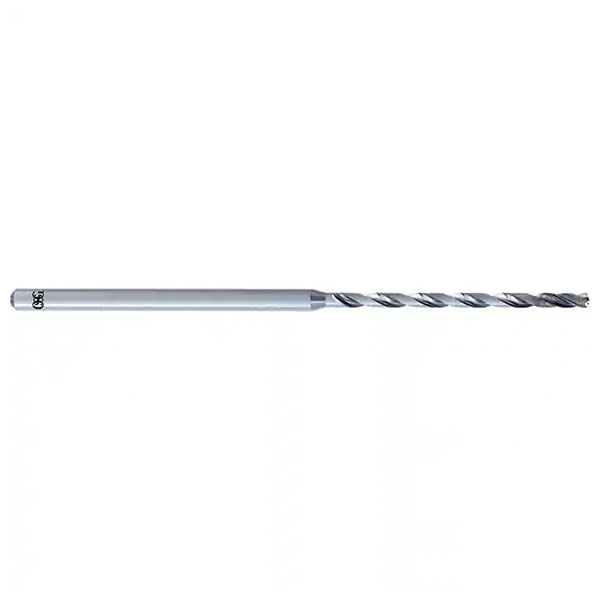

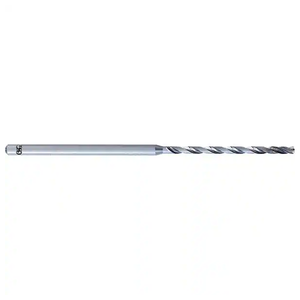

1.1mm Micro Drill 2 Flute Solid Carbide Through Coolant IchAda Coated 12xD - OSG - Precision Engineering Tools EW Equipment OSG,
1.1mm Micro Drill 2 Flute Solid Carbide Through Coolant IchAda Coated 12xD - OSG - Precision Engineering Tools EW Equipment OSG,

1.1mm Micro Drill 2 Flute Solid Carbide Through Coolant IchAda Coated 12xD - OSG

OSG-8732036

OSG

ADO-MICRO-12D - 1.1mm

    The A Brand ADO-MICRO is ideal for applications in carbon steel, alloy steel, stainless steel, cast iron, ductile cast iron, aluminium alloy, titanium alloy and heat resistant alloy.

    Product features and benefits:

    • First Choice in quality and performance.
    • Oil Holes Large flow volume enables superior chip evacuation.
    • Double Margin (12xD) Supports straightness of drill direction.
    • Through Coolant/IchAda Coating Provides excellent surface smoothness.
    • Extended Flute Chips are discharged from the tip of the flute to the extended flute with enhanced evacuation capability.
    • Removed End of Margin Capability to smoothly discharge “micro sludges” that can be easily accumulated around the outer periphery of the tool, which is a key cause of abrupt tool breakage.

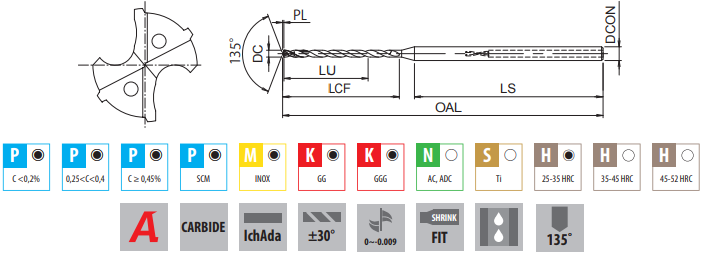

    Diameter (DC) 1.1mm
    Flute Length (LU) 13.2mm
    Neck Length (LCF) 18.7mm
    Overall Length (OAL) 65mm
    Shank Diameter (DCON) 3.0mm
    Shank Length (LS) 42.3mm
    PL 0.2mm
    Shank Tolerance Shrink Fit
    OSG-8732036 1.1MM MICRO DRILL 2 FLUTE SOLID CARBIDE THROUGH COOLANT ICHADA COATED 12XD - OSG
