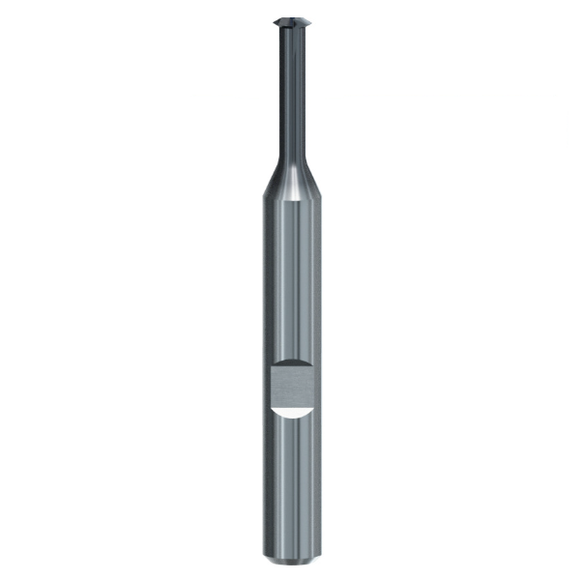

1/4 x 56-20 Pitch (mm) UNC Solid Carbide Circular Thread Milling Cutter (Flatted Shank) - Emuge Franken
GF27310A.5009
ZGF-MULTI 3xD UNC
Machining of countersunk chamfer and internal thread.
- From thread size UNC 1/4 / UNF 1/4.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- Without through coolant.
| d1 | 1/4 |
| Pitch (mm) | 56-20 |
| dF | 4.95mm |
| d2 | 6mm |
| l1 | 59mm |
| l3 | 20.3mm |
| l4 | 36mm |
| Z | 4 |
