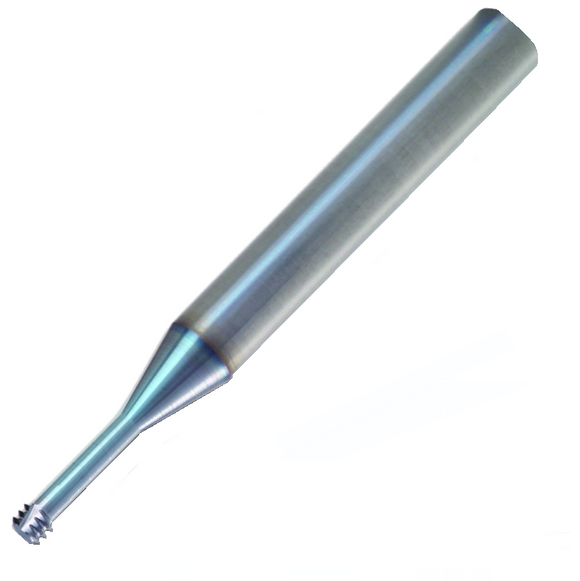

UN 1/4"x20 2xDo - 20 TPI Pitch UN DT3 Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00034
Thread Milling TM Solid Carbide MilliPro IN 20 TPI UN Shank Diameter 6 (mm) Cutting Diameter 4.88 (mm) Tool Overhang 13.4 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
| Thread Standard | UN |
| Pitch | 20 TPI |
| EXT/INT | IN |
| Coolant | No |
| L | 13.4mm |
| L1 | 13.4mm |
| Le | 3.81mm |
| Cutting Dia | 4.88mm |
| Z | 3 |
| Zt | 3 |
| Grade | VTH |
| Coating | TiCN |
| Description | D3T06048L134-I20UNTMVTH |
| Shank Dia | 6mm |
