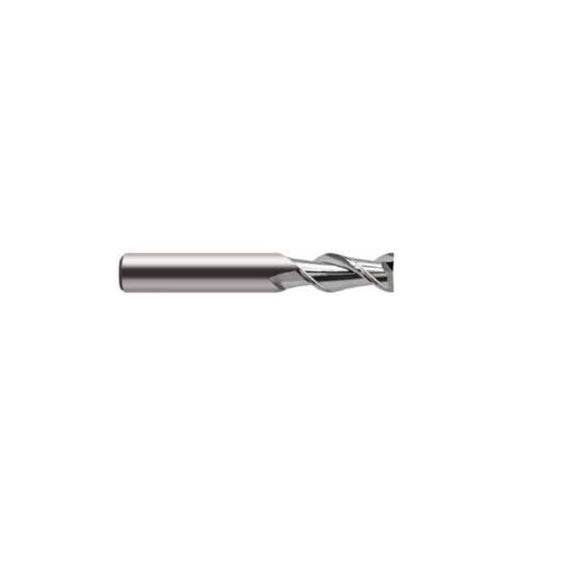

20mm 2 FL LONG LENGTH 45DEG HELIX END MILL (ALU XP EUROPA TOOL) 1513032000 - Precision Engineering Tools EW Equipment

20mm 2 FL LONG LENGTH 45DEG HELIX END MILL (ALU XP EUROPA TOOL) 1513032000

Europa

£98.40
Save £253

Long Length

45º Helix ø1.0mm - 20.0mm

Suitable for high speed machining of aluminium and other non-ferrous materials. Excellent surface finishes, superior chip removal. Corner protected. Mirror polished flutes.

EUROPA CODE ORDCODE DIAMETER DC SHANK DIAMETER DMM LENGTH OF CUT APMX OVERALL LENGTH OAL CHAMFER WIDTH CHW 1513030100 1.0 6 3.0 50 0.04 1513030150 1.5 6 5.0 50 0.04 1513030200 2.0 6 6.0 50 0.04 1513030250 2.5 6 8.0 55 0.04 1513030300 3.0 6 8.0 57 0.05 1513030400 4.0 6 11.0 57 0.05 1513030500 5.0 6 13.0 57 0.05 1513030600 6.0 6 13.0 57 0.05 1513030800 8.0 8 19.0 63 0.05 1513031000 10.0 10 22.0 72 0.10 1513031200 12.0 12 26.0 83 0.10 1513031400 14.0 14 26.0 83 0.10 1513031600 16.0 16 32.0 92 0.10 1513031800 18.0 18 32.0 92 0.10 1513032000 20.0 20 38.0 104 0.10
