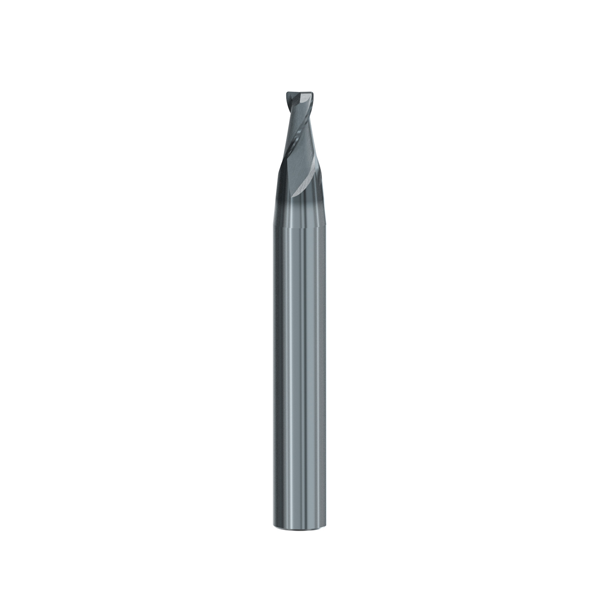

3° Taper / 5mm x R0.5 - 2 Flute Solid Carbide Tapered Torus End Mill Turbine - Emuge Franken

3444L.03005A

Emuge

  • £95.79


    Turbine tapered carbide torus end mill for roughing applications in almost all materials.

    Product features and benefits:

    • Design with two flutes and various taper angles.
    • Ideal for pre-machining turbine components or other complex 5-axis components.
    • ALCR coating for longer tool life, very well suited for high-alloyed materials.
    • Multi-functional tool.
    • For almost all materials
    • Suitable for roughing
    • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

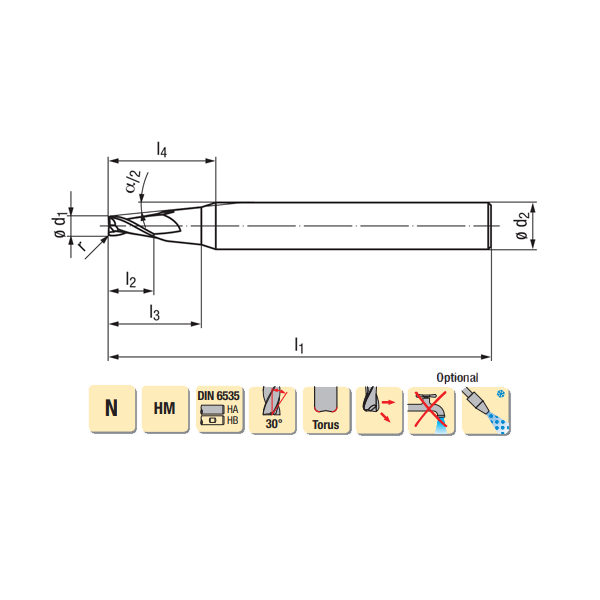

    Taper Angle (α/2)
    Cutting Diameter (Ød1) 5mm
    Radius (r1) 0.5mm
    Radius Tolerance ±0,01mm
    Cutting Length (l2) 10mm
    Neck Length (l3) 25mm
    Length of shank connection (l4) 26mm
    Overall Length (l1) 63mm
    Shank Diameter (Ød2) 8mm
    Shank Diameter Tolerance h6
    Flutes (Z) 2
    Tool Interface Straight Shank
    Tool Interface Norm DIN 6535
    Coating ALCR
    Internal Coolant Supply Without internal cooling
    Helix Angle 30°
