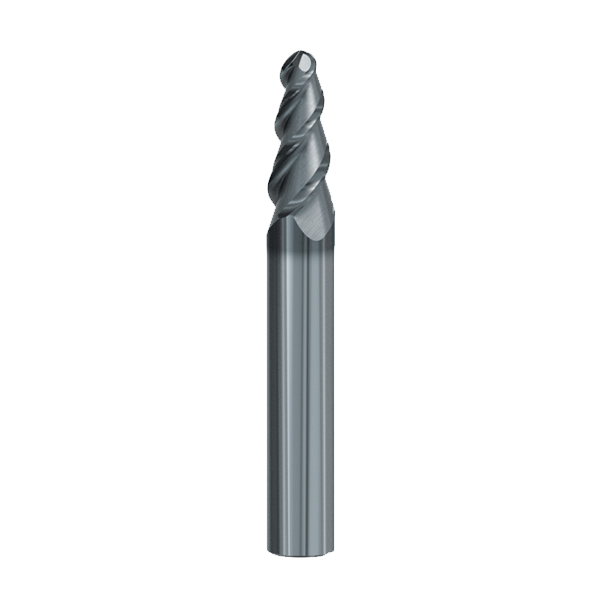

4° Taper / R1 - 3 Flute Solid Carbide Tapered Ball Nose End Mill Turbine - Emuge Franken

3440L.04010A

Emuge

  • £144.20


    Turbine tapered carbide ball nose end mill for universal finishing applications in many materials.

    Product features and benefits:

    • Design with three flutes and various taper angles.
    • Ideal for finishing turbine components or other complex 5-axis components.
    • ALCR coating for longer tool life, very well suited for high-alloyed materials.
    • Multi-functional tool.
    • For almost all materials.
    • Suitable for finishing.
    • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

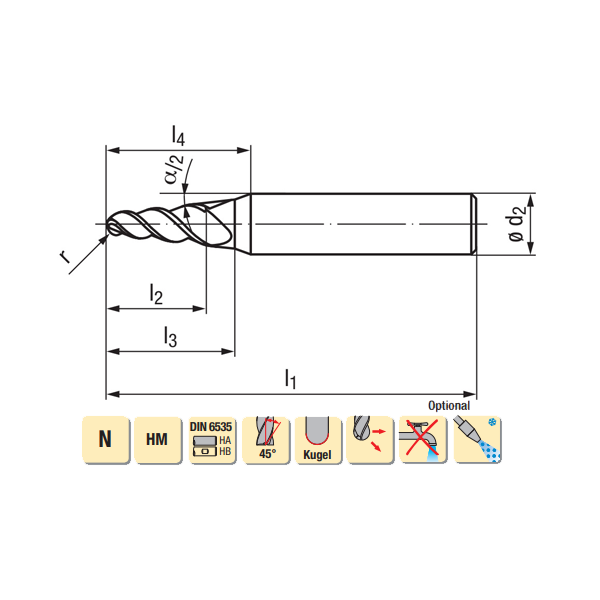

    Taper Angle (α/2)
    Radius (r1) 1mm
    Radius Tolerance ±0.01mm
    Cutting Length (l2) 20mm
    Neck Length (l3) 20mm
    Length of Shank Connection (l4) 24mm
    Overall Length (l1) 62mm
    Shank Diameter (Ød2) 6mm
    Shank Diameter Tolerance h6
    Flutes (Z) 3
    Tool Interface Straight Shank
    Tool Interface Norm DIN 6535
    Coating ALCR
    Internal Coolant Supply Without Internal Cooling
    Helix Angle 45°
