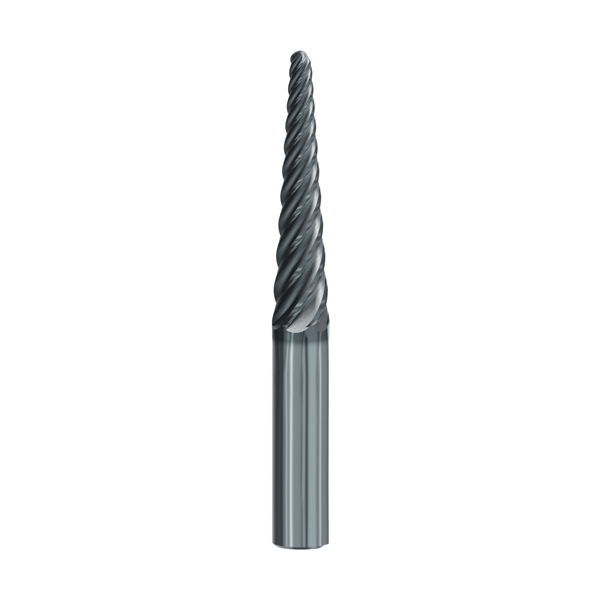

4° Taper / R4 - 6 Flute Solid Carbide Tapered Ball Nose Long End Mill Turbine - Emuge Franken
3548L.04040A
Turbine tapered carbide ball nose end mill for finishing applications in many particularly difficult to machine and tough materials.
Product features and benefits:
- Design with three flutes in ball nose section and six radial flutes.
- Ideal for finishing turbine components or other complex 5-axis components.
- ALCR coating for longer tool life, very well suited for high-alloyed materials.
- High performance tool.
- Especially suitable for difficult to cut materials.
- For all tough materials.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

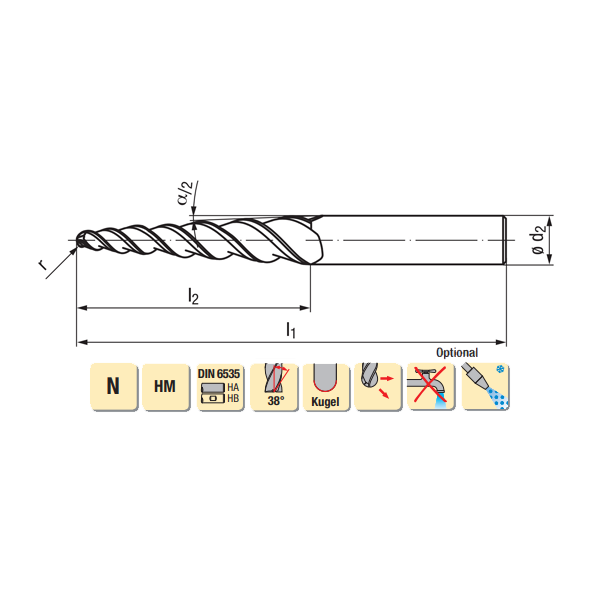

| Taper Angle (α/2) | 4° |
| Radius (r1) | 4mm |
| Radius Tolerance |
±0.01mm |
| Cutting Length (l2) | 89mm |
| Overall Length (l1) | 155mm |
| Shank Diameter (Ød2) | 20mm |
| Shank Diameter Tolerance | h6 |
| Flutes (Z) | 6 |
| Tool Interface | Straight Shank |
| Tool Interface Norm | DIN 6535 |
| Coating | ALCR |
| Internal Coolant Supply | Without Internal Cooling |
| Helix Angle | 38° |
