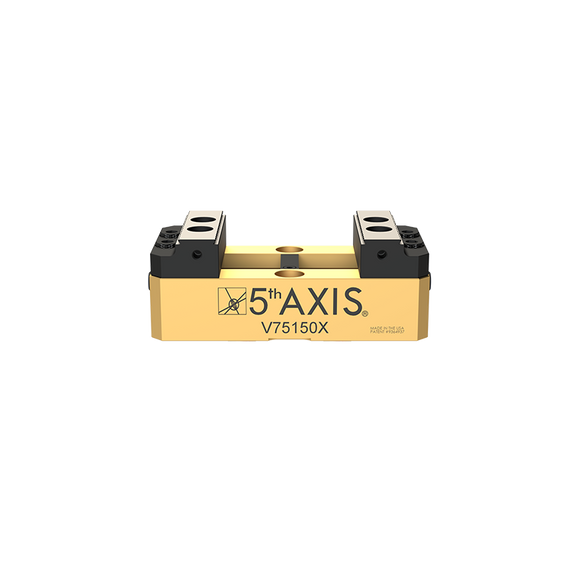

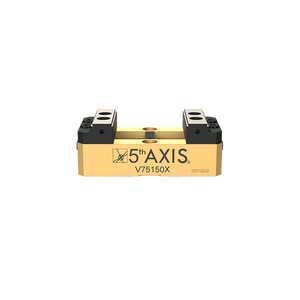

V75150X Self Centering Vice - 5th Axis

Size:

75mm x 150mm x 56mm

Jaw Width: 126mm
Clamping Force: 20.0 kK @ 100 Nm
Max Torque: 75 Nm
Forward Clamping Range:
0 – 183.9mm
Reverse Clamping Range:
72.6mm – 254.8mm

The V75150X was created out of customer demand for a small self-centering vise with an increased clamping range over the popular V75100X vise.  The base is 50mm longer than the standard V75100X, allowing the max workpiece size to increase from 76mm to 128mm.  The V75150X maintains the same 75mm jaw width for maximum tool clearance.  The new 4 bolt jaw mounting design reduces jaw lift and the sharper teeth provide a superior bite in raw material.
