80.460.00.FHN Haimer 3D DIGITAL TESTER Universal Clamping 20 mm Shank - Precision Engineering Tools EW Equipment

80.460.00.FHN Haimer 3D Digital Tester Universal Clamping 20mm Shank

80.460.00.FHN

EW Equipment

  • £549.00



Due to new duty charges from the EU all Haimer sensors may not be available on a guaranteed next day delivery.

 If you order is urgent, please contact the team and we can let you know the best we can do.

3D-Sensor Digital

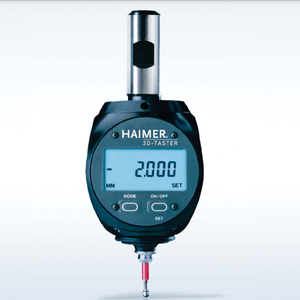

The Digital 3D-Sensor is a further development of the time proven mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines.

The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The zero points can be set without any calculations because the spindle axis is positioned exactly on the approached edge.

The digital display has large numbers that measure in increments of 0.001 mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is water- and dust-proofed according to IP 64 and can be stored in the tool magazine of the machine.

Please take note: The given measuring precision of 0.005 mm only applies, if the original HAIMER probe tips are used.

Included in delivery: 3D-Sensor Digital with clamping shank Ø 20 mm, short probe tip Ø 4 mm

Technical data subject to change without prior notice.


Technical drawing

Measuring Instrument 3D-Sensor Digital Technical Drawing

Technical Data

L1 [mm] 113
L2 [mm] 50
Ø D1 [mm] 20
Ø D2 [mm] 4
B [mm] 65
Smallest unit of measure [mm] 0,001
Repeatability [mm] 0,005
Measuring accuracy [mm] 0,005
Display mode inch / metric
Display size [mm] 45 x 23
Height of numbers [mm] 8,5
Service life of battery approx. (continuos operation) [hrs] 3000
