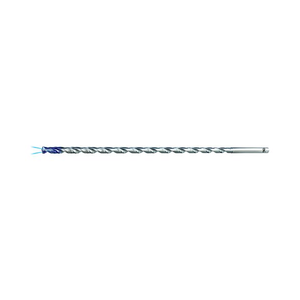

9.6mm 2 Flute Solid Carbide Through Coolant Drill 30xD EgiAs Coated For General Use - OSG
OSG-8716960
ADO-30D - 9.6mm
Product features and benefits:
- First choice in quality and performance
- Carbide drill with internal coolant, EgiAs coating
- Double margin, up to 30xD
- For general purpose steels and cast iron

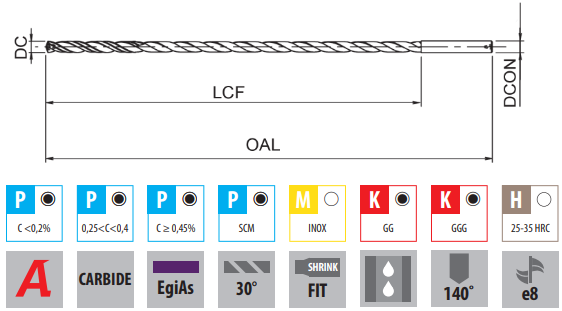

| Diameter (DC) | 9.6mm |
| Drill Cutting Length (LCF) | 330mm |
|
Overall Length (OAL) |
390mm |
| Shank Diameter (DCON) | 10mm |
| Shank Diameter Tolerance | h6 |
| Point Angle | 140° |
| Number of Flutes (NOF) | 2 |
