A2022N00CM02 KC5025 - Kennametal A2 Inserts - Precision Engineering Tools EW Equipment

A2022N00CM02 KC5025 - Kennametal A2 Inserts

KENNAMETAL

  • £50.92
  • Save £16


THE PRICE IS FOR 1 BOX OF 10 INSERTS

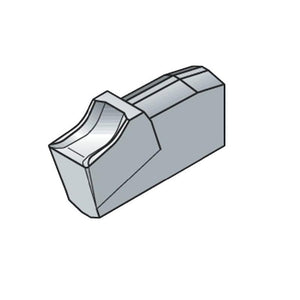

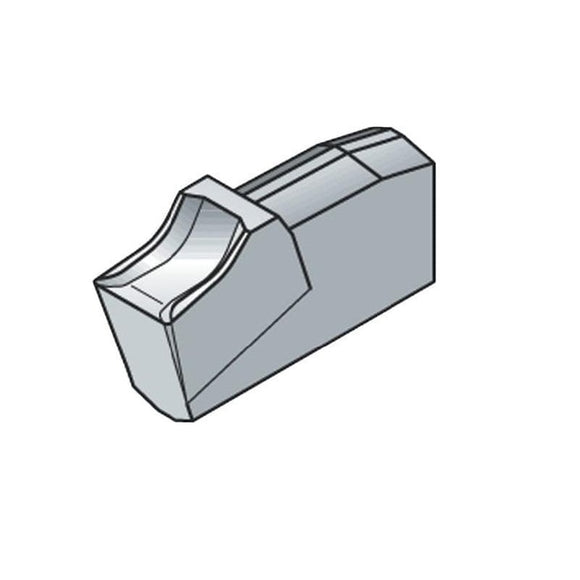

Grooving and Cut-Off A2™ Cut-Off Inserts

Product # 4111084
ISO Catalog Number A2022N00CM02
ANSI Catalog Number A2022N00CM02
Grade KCU25
Insert Size 2
[W] Cutting Width Metric 2,200
[W] Cutting Width Inch .0870
[RR]Corner Radius rh Metric 0,200
[RR]Corner Radius rh Inch .0080
GRADE KCU25

Turning Composition: An advanced PVD grade with hard AlTiN coating and fine-grain unalloyed substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities.

Turning Application: The KCU25 grade is ideal for general machining of most steels, stainless steels, high-temp alloys, titanium, irons, and non-ferrous materials in a wide range of speeds and feeds with improved edge toughness for interrupted cut and high feed rates.

Holemaking Composition: Advanced CVD TiCN-Al2O3 coating combined with a tough carbide substrate.

Holemaking Application: First choice for steel, stainless steel, and cast iron. This grade offers adequate deformation resistance, excellent edge strength, and superior wear resistance over a wide range of machining conditions for high productivity with very good reliability.
