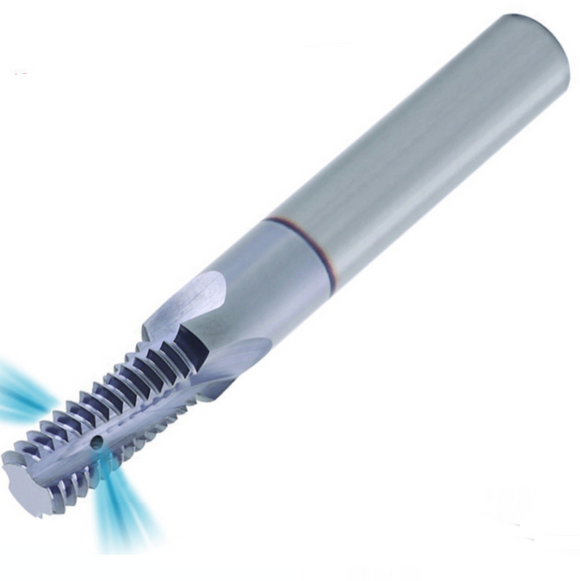

BSP 1/8"x28-2xDo - 28TPI Pitch BSPT Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00034Thread Milling TM Solid Carbide HeliCool-Radial Cooling EX/IN 28TPI ISO Shank Diameter 10 (mm) Cutting Diameter 8.2 (mm) Tool Overhang 19.5 (mm) VTH Grade
- For Internal And External Machining
- For BSPT threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
Thread Standard | BSPT |
Pitch | 28TPI |
EXT/INT | EX/IN |
Coolant | Yes |
L | 19.5mm |
L1 | 19.5mm |
Le | 19.5mm |
Cutting Dia | 8.2mm |
Z | 3 |
Zt | 21 |
Grade | VTH |
Coating | TiCN |
Description | HCR10082L19-EI28BSPTMVTH |
Shank Dia | 10mm |
106-00034 BSP 1/8"X28-2XDO - 28TPI PITCH BSPT HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
