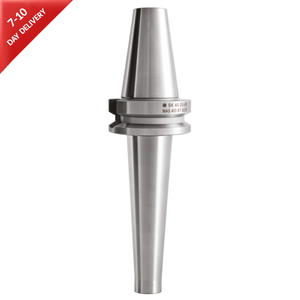

BT MAS 403 BT40 - 10.5mm (M10) Milling cutter arbor for screw-on type milling cutters ER-Plus Dual Contact/Face & Taper - 127mm Gauge (AD/B) - Eroglu
406.12.10.127.ERP
BT MAS 403 - BT40 - AD/B - M10 - 10.5mm - ER-PLUS - 127mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

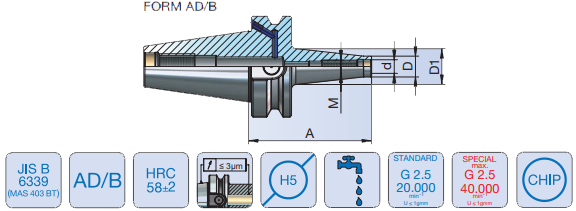

| Description | BT40 ERP |
| Form | AD/B |
| M | M10 |
| d | 10.5mm |
| A (Gauge) | 127mm |
| D | 18mm |
| D1 | 32mm |
| L | 100mm |
