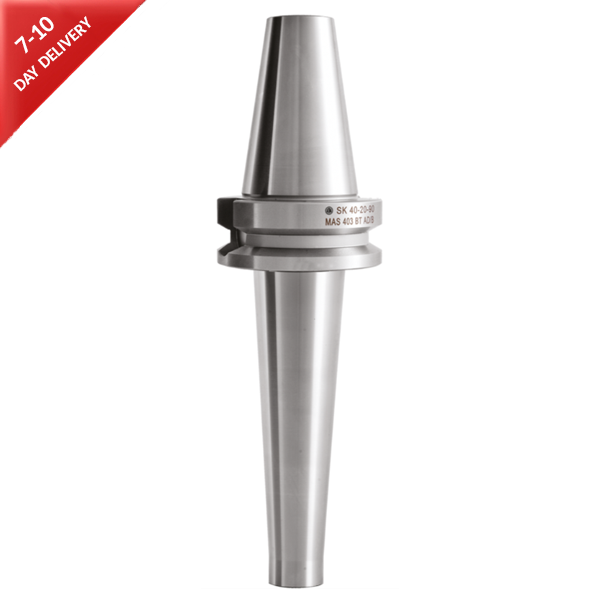

BT MAS 403 BT40 - 17mm (M16) Milling cutter arbor for screw-on type milling cutters ER-Plus Dual Contact/Face & Taper - 102mm Gauge (AD/B) - Eroglu
406.12.16.102.ERP
BT MAS 403 - BT40 - AD/B - M16 - 17mm - ER-PLUS - 102mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

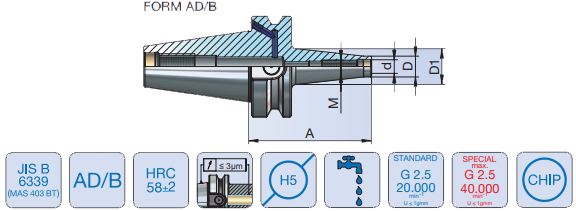

| Description | BT40 ERP |
| Form | AD/B |
| M | M16 |
| d | 17mm |
| A (Gauge) | 102mm |
| D | 29mm |
| D1 | 34mm |
| L | 75mm |
