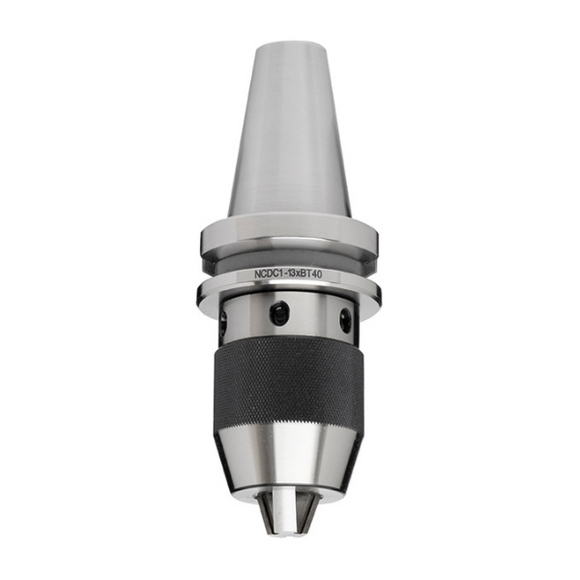

BT40 1-13mm NCDC Drill Chuck DCBT (Face & Taper/Dual Contact) - Omega Products
OM34935DCBT40 - Face & Taper / Dual Contact
- BT MAS403
- High Accuracy Drill Chuck
- Maximum Rigidity
DCBT Technical Specification:

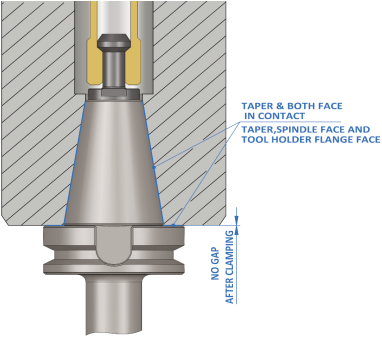

- DCBT Face & Taper Contact Tool Holders would maintain greater rigidity than standard BT Tool Holders
- Achieves Higher ‘Radial Rigidity’
- Manufactured with case hardened steel, core tensile strength min. 950 N/mm2
- Tolerance AT3

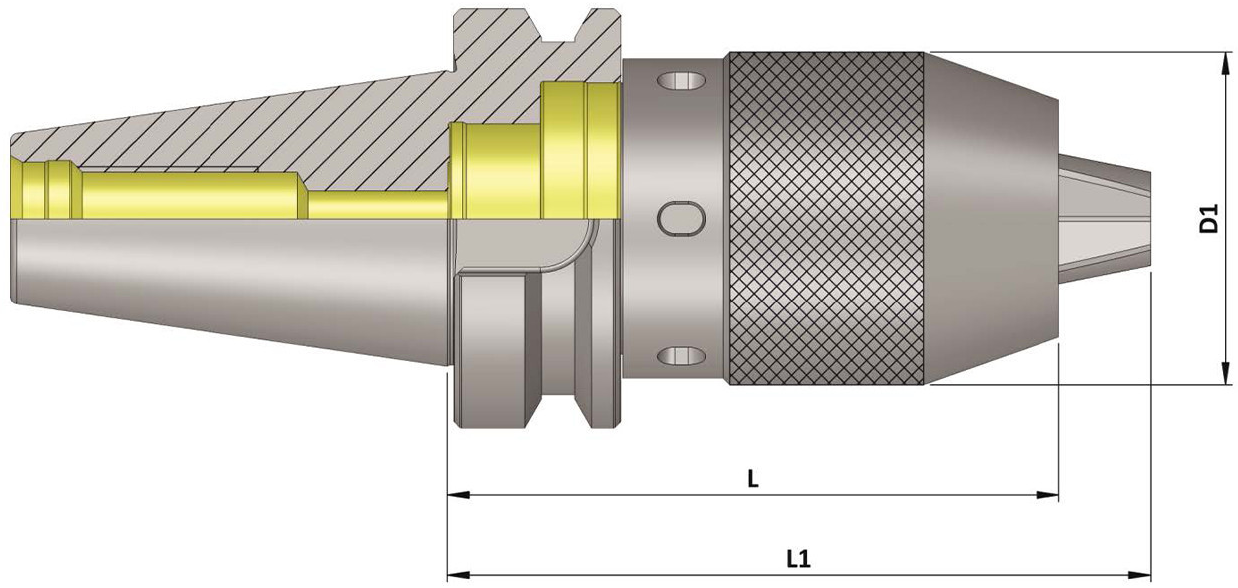

- (See images for drawing)
| Description | DCBT40 NCDC 1-13mm |
| D1 | 50mm |
| L | 92.5mm |
| L1 | 105mm |
