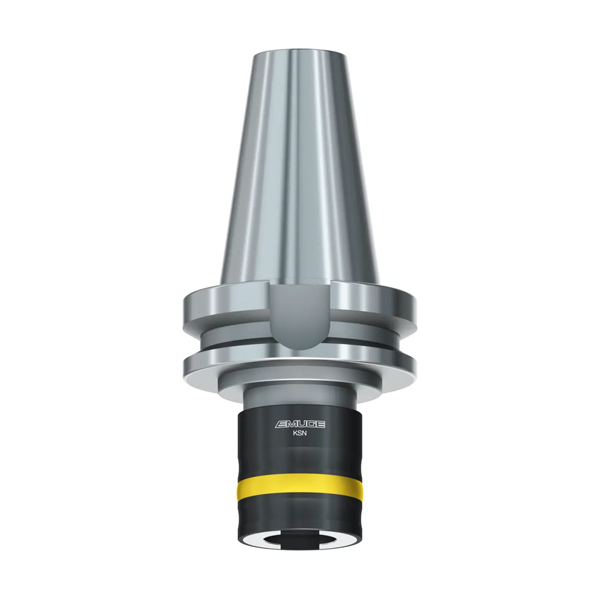

BT50 - KSN 3 (JIS B 6339) Quick Change Tap Holder for EM03 Tap Adapters - Emuge
F3303893
BT50 - KSN 3 (JIS B 6339) - EM03 (Size 2) - M4.5-24
KSN quick-change holder for use with threading tools on CNC machining centres and pillar drilling machines.
Product features and benefits:
- For use with all common quick-change adaptors type EM.
- With length compensation in pressure and tension direction to compensate deviations between spindle feed and thread pitch.
- Specially designed pressure point mechanism for reliable begin to cut for tool.
- Tension release to avoid damage due to oversized axial tensile loads.
*Please note these are not available on a guaranteed next day delivery*
| Description | quick-change tap holder |
| Type | KSN |
| Type Size | 3 |
| Shank Standard | JIS B 6339 |

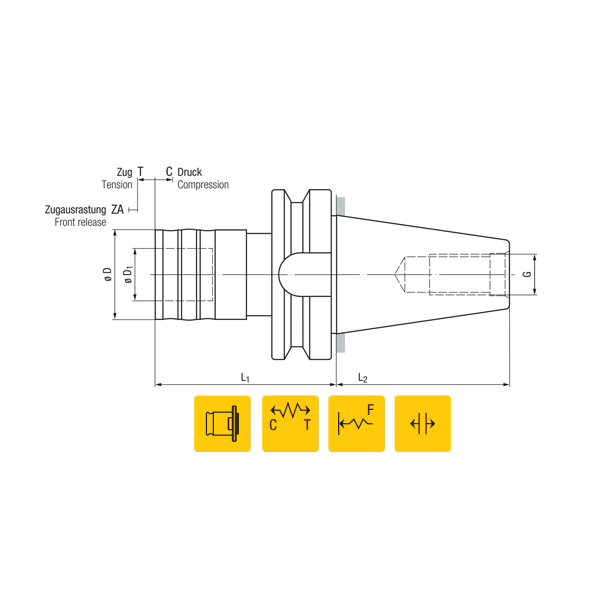

| Shank Size (D2) | BT50 |
| Cutting Area (M) | M4.5-24 |
| Clamping Area (Ø) | 6-18mm |
| Outside Diameter (D) | 53mm |
| Projection Length (L1) | 107mm |
| L2 | 101.8mm |
| Overall Length (L1+L2) | 208.8mm |
| D1 | 31mm |
| G | M24 |
| Compression (C) | 8.5mm |
| Tension (T) | 15mm |
| Front Release (ZA) | 2.8mm |
