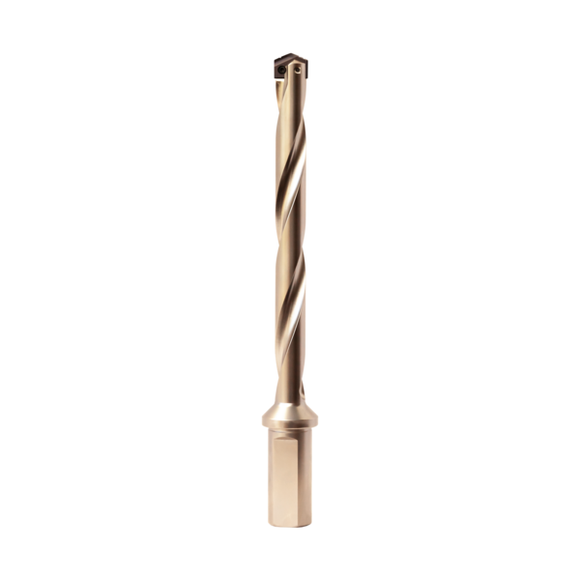

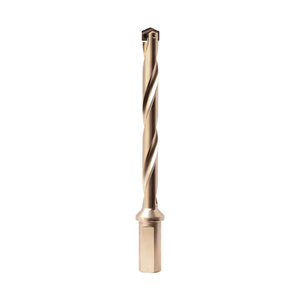

Spade Drill Holder - Straight Shank - Spiral Flute Standard - (13.00mm - 17.65mm) - 80425020FM
80425020FM
Size 0 Spade Drill - Straight Shank - Spiral Flute - 13.00mm - 17.65mm
| DC | 13mm |
| DCX | 17.65mm |
|
LU |
63.5mm |
|
DMM |
20mm |
| OAL | 134mm |
| LB | 92.1mm |
| LS | 41.9mm |
| LF | 94.9mm |
| CNT(R) | 1/8" BSP |
| Insert | Series 0 |
