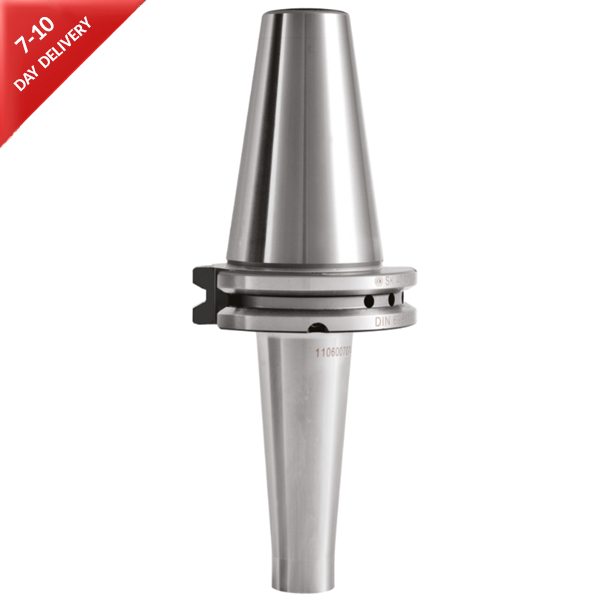

DIN 69871 SK40 - 12.5mm (M12) Milling cutter arbor for screw-on type milling cutters ER-Plus Dual Contact/Face & Taper - 144mm Gauge (AD/B) - Eroglu
403.12.12.144.ERP
DIN 69871 - SK40 - AD/B - M12 - 12.5mm - ER-PLUS - 144mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

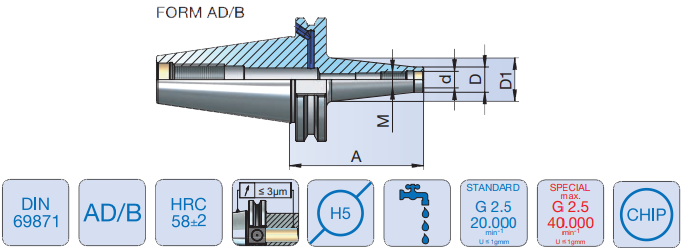

| Description | SK40 ERP |
| Form | AD/B |
| Capacity | M12 |
| d | 12.5mm |
| A (Gauge) | 144mm |
| D | 21mm |
| D1 | 35.5mm |
| L | 125mm |
