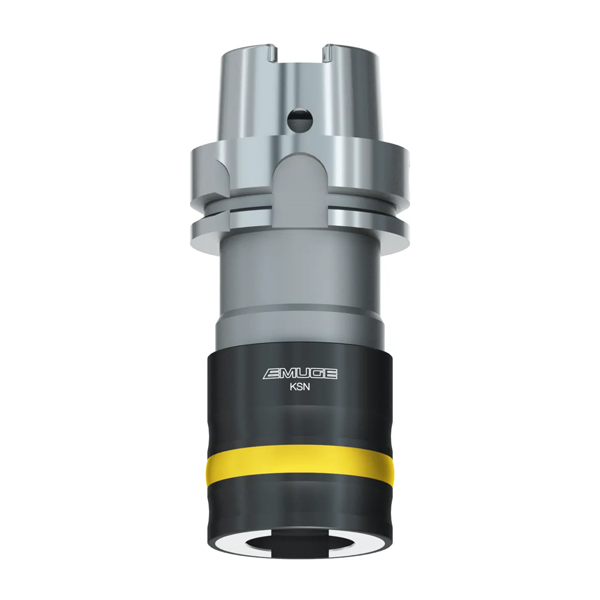

HSK-A100 - KSN 4 (DIN69893 A) Quick Change Tap Holder for EM04 Tap Adapters - Emuge
F3304C06.30
HSK-A100 - KSN 4 (DIN 69893 A) - EM04 (Size 3) - M14-36
KSN quick-change holder for use with threading tools on CNC machining centres and pillar drilling machines.
Product features and benefits:
- For use with all common quick-change adaptors type EM.
- With length compensation in pressure and tension direction to compensate deviations between spindle feed and thread pitch.
- Specially designed pressure point mechanism for reliable begin to cut for tool.
- Tension release to avoid damage due to oversized axial tensile loads.
*Please note these are not available on a guaranteed next day delivery*

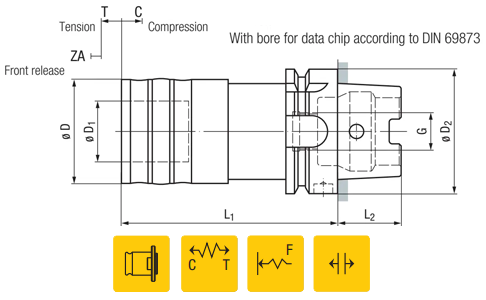

| Description | quick-change tap holder |
| Type | KSN |
| Type Size | 4 |
| Shank Standard | DIN 69893 |
| Shank Size & Type (D2) | HSK-A100 |
| Cutting Area (M) | M14-36 |
| Clamping Area (Ø) | 11-28mm |
| Outside Diameter (D) | 78mm |
| Projection Length (L1) | 170.5mm |
| L2 | 50mm |
| Overall Length (L1+L2) | 220.5mm |
| D1 | 48mm |
| G | M24 x 1.5 |
| Compression (C) | 15mm |
| Tension (T) | 23.5mm |
| Front Release (ZA) | 4.1mm |
