HSK-A100 - KSN 5 (DIN69893 A) Quick Change Tap Holder for EM05 Tap Adapters - Emuge
F3305C06.30
HSK-A100 - KSN 5 (DIN 69893 A) - EM05 (Size 4) - M22-48

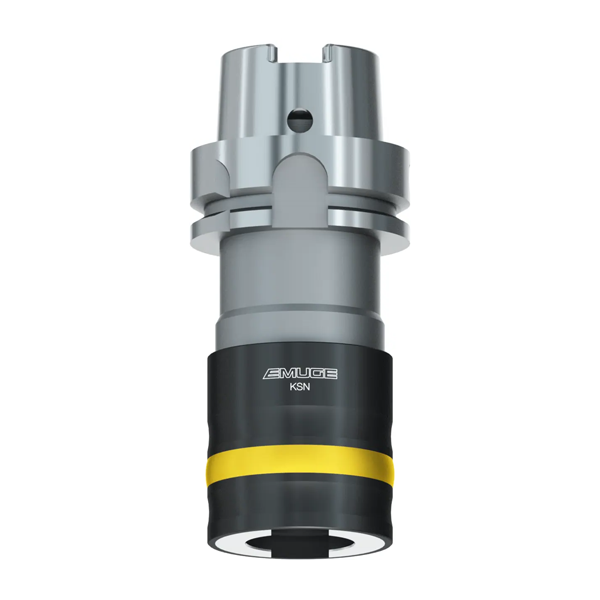

KSN quick-change holder for use with threading tools on CNC machining centres and pillar drilling machines.
Product features and benefits:
- For use with all common quick-change adaptors type EM.
- With length compensation in pressure and tension direction to compensate deviations between spindle feed and thread pitch.
- Specially designed pressure point mechanism for reliable begin to cut for tool.
- Tension release to avoid damage due to oversized axial tensile loads.
*Please note these are not available on a guaranteed next day delivery*

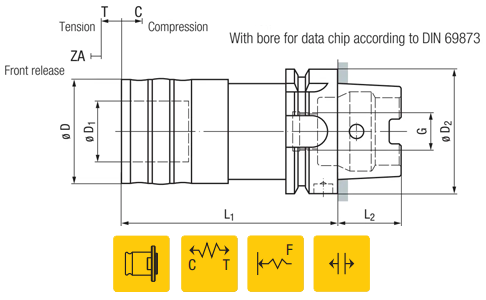

| Description | quick-change tap holder |
| Type | KSN |
| Type Size | 5 |
| Shank Standard | DIN 69893 |
| Shank Size & Type (D2) | HSK-A100 |
| Cutting Area (M) | M22-48 |
| Clamping Area (Ø) | 18-36mm |
| Outside Diameter (D) | 96mm |
| Projection Length (L1) | 205mm |
| L2 | 50mm |
| Overall Length (L1+L2) | 255mm |
| D1 | 60mm |
| G | M24 x 1.5 |
| Compression (C) | 16.5mm |
| Tension (T) | 25mm |
| Front Release (ZA) | 5.7mm |
