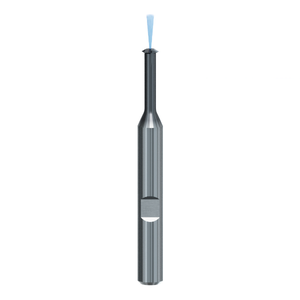

M10 x 0.51-1.5 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken
GF27310A.0100
ZGF-MULTI 3xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size UNC 5/16 / UNF 5/16.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- IKZ coolant supply.
| d1 | M10 |
| Pitch (mm) | 0.51-1.5 |
| dF | 8.2mm |
| d2 | 10mm |
| l1 | 77mm |
| l3 | 31.5mm |
| l4 | 40mm |
| Z | 5 |
