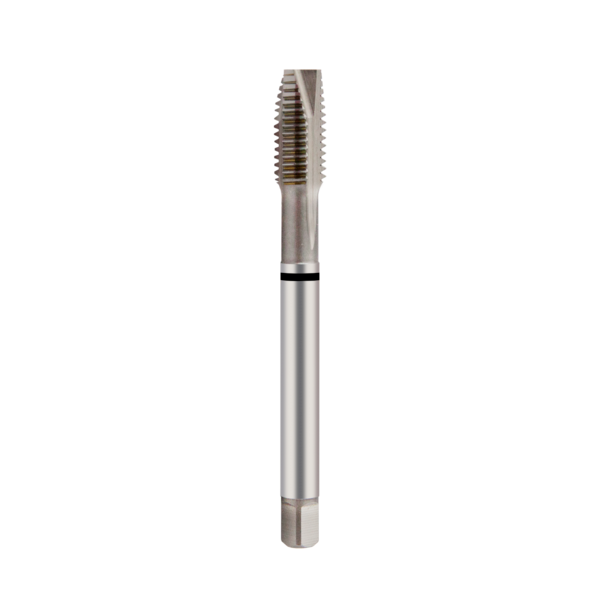

M10 x 1.5 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81401000
TM81401000 - M10 x 1.5
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN371

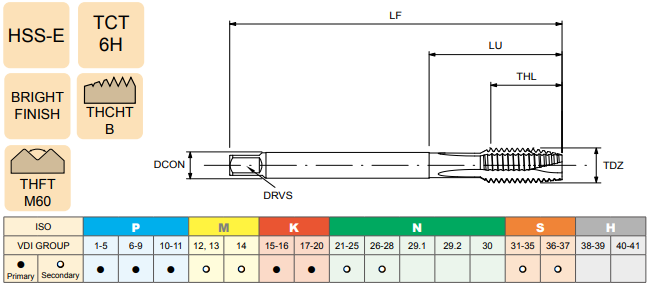

| Size (TDZ) | M10 |
| Pitch (TP) | 1.5mm |
| Thread Length (THL) | 22mm |
| Overall Length (LF) | 100mm |
| Neck Length (LU) | 39mm |
| DCON | 10.0mm |
| DRVS | 8.0mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 8.5mm |
