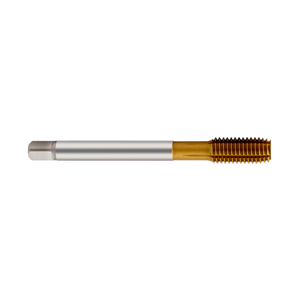

M12 x 1.75 Roll tap tin coated HSS-E 6HX Cold forming Europa tool TM38171200
TM38171200
TM3817 - Roll Tap
- Cold Forming tap with oil grooves.
- For materials with at least 10% elongation.
- TiN coated, a great all round coating for general use.
| Thread Diameter (TDZ) | M12 |
| Pitch (TP) | 1.75 |
| Thread Length (THL) | 24mm |
| Overall Length (LF) | 110mm |
| Neck Length (LU) | 44mm |
| Shank Diameter (DCON) | 9mm |
| Drive square size (DRVS) | 7mm |
| Pre-machined Hole Diameter/Drill Size (PHD) | 11.2 |
