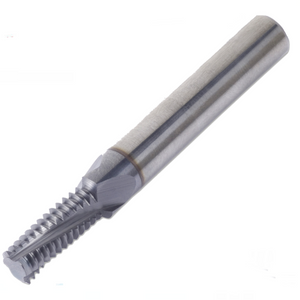

M12x1.0 2xDo - 1.0mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00010Thread Milling TM Solid Carbide Helical IN 1 mm ISO Shank Diameter 10 (mm) Cutting Diameter 9.9 (mm) Tool Overhang 24 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
Thread Standard | ISO Metic |
Pitch | 1.0mm |
EXT/INT | IN |
Coolant | No |
L | 24mm |
L1 | 24.0mm |
Le | 24mm |
Cutting Dia | 9.9mm |
Z | 4 |
Zt | 24 |
Grade | VTH |
Coating | TiCN |
Shank Dia | 10mm |
Description | H10099L24-I1.0ISOTMVTH |
