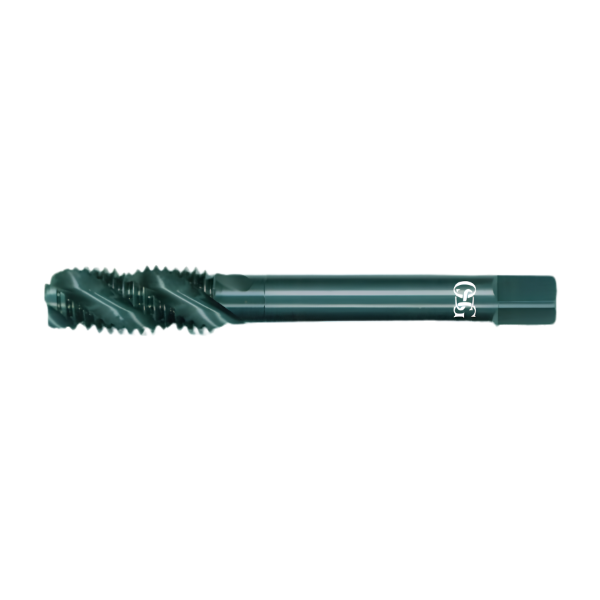

M2 x 0.4 1066-SFT HSS-E Spiral Flute Cutting Tap Steam Tempered - OSG
M2 x 0.4 1066-SFT HSS-E Spiral Flute Cutting Tap Steam Tempered - OSG

M2 x 0.4 1066-SFT HSS-E Spiral Flute Cutting Tap Steam Tempered - OSG

22201254

OSG

1066-SFT

Product features and benefits:

  • HSS-E cobalt for toughness and wear resistance
  • Steam-tempered finish helps reduce friction and material build-up
  • Spiral flutes draw chips out of the hole for smoother tapping
  • Ideal for blind-hole threading in steels and other long-chipping materials

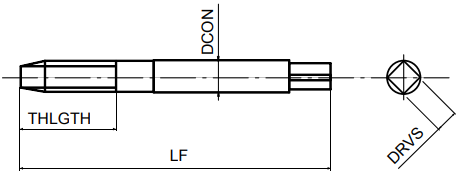

Thread Type M
Thread Diameter (TD) 2mm
Pitch (TP) 0.4mm
Functional Length (LF)
 41.0mm
Thread Length (THLGTH) 8.00mm
Shank Diameter (DCON) 2.50mm
Drive Size (DRVS) 2.00mm
Pre-machined Hole Diameter (PHD) 1.60mm

22201254 M2 X 0.4 1066-SFT HSS-E SPIRAL FLUTE CUTTING TAP STEAM TEMPERED - OSG
