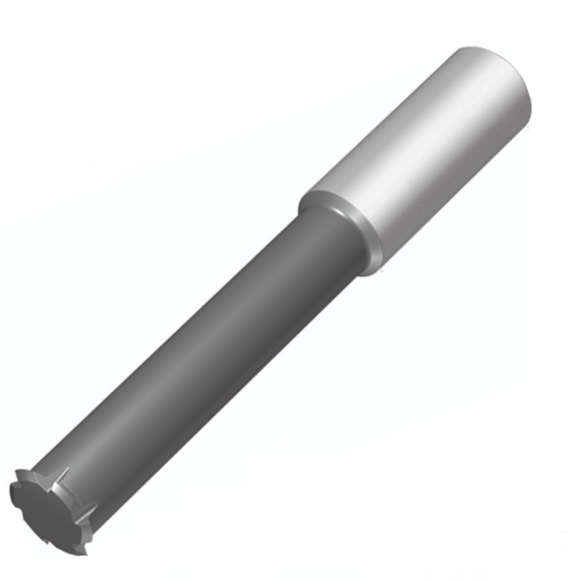

M2x0.4-3xDo - 0.4mm Pitch ISO Metric D1T Deep Hole Threading Carbide Thread Mill  - Vardex Helical - Precision Engineering Tools EW Equipment

M2x0.4-3xDo - 0.4mm Pitch ISO Metric D1T Deep Hole Threading Carbide Thread Mill - Vardex Helical

103-00006

EW Equipment

  • £80.00

Only 5 left!

Thread Milling TM Solid Carbide Deep Threading IN 0.4 mm ISO Shank Diameter 3 (mm) Cutting Diameter 1.5 (mm) Tool Overhang 6.2 (mm) VTH Grade
  • For Internal Machining
  • For Metric threads
  • Made from Micrograin Solid Carbide
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
  • TiCN coating for longer tool life
  • Used for Deep Hole Threading

Thread Standard ISO Metric
Pitch 0.4mm
EXT/INT IN
Coolant No
L 6.2mm
L1 6.2mm
Le 0.4mm
Cutting Dia 1.5mm
Z 3
Zt 1
Grade VTH
Coating TiCN
Shank Dia 3mm
Description D1T03015L062-I0.40ISOTMVTH
