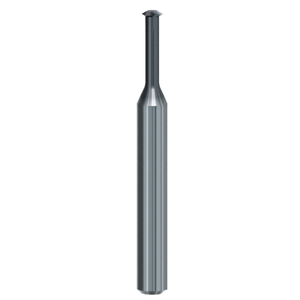

M3.5 x 0.22-0.75 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken
GF25370A.0035
ZGF-MULTI 2xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size M1.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- Without through coolant
| d1 | M3.5 |
| Pitch (mm) | 0.22-0.75 |
| dF | 2.78mm |
| d2 | 4mm |
| l1 | 42mm |
| l3 | 9.4mm |
| l4 | 28mm |
| Z | 3 |
