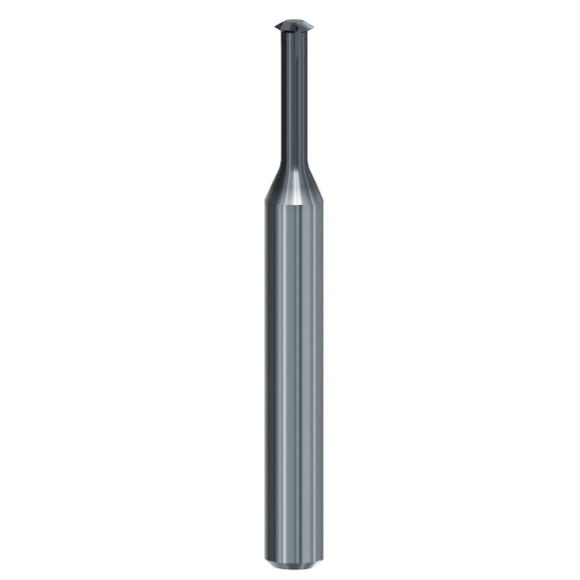

M3 x 0.18-0.5 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken
GF27370A.0030
ZGF-MULTI 3xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size UNC Nr.2/ UNF Nr.10.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- Without through coolant.
d1 | M3 |
Pitch (mm) | 0.18-0.5 |
dF | 2.4mm |
d2 | 3mm |
l1 | 41mm |
l3 | 9.5mm |
l4 | 28mm |
Z | 3 |
