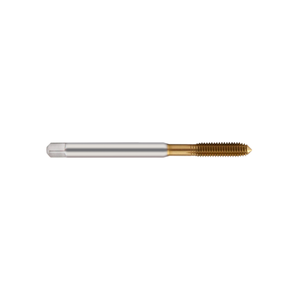

M3 x 0.5 Roll tap TiN coated HSS-E 6HX Cold forming Europa tool TM38170300TM38170300
TM3817 - Roll Tap
- Cold Forming tap with oil grooves.
- For materials with at least 10% elongation.
- TiN coated, a great all round coating for general use.
|Thread Diameter (TDZ)||M3|
|Thread Length (THL)||11mm|
|Overall Length (LF)||56mm|
|Neck Length (LU)||18mm|
|Shank Diameter (DCON)||3.5mm|
|Drive square size (DRVS)||2.7mm|
|Pre-machined Hole Diameter/Drill Size (PHD)||2.8|
