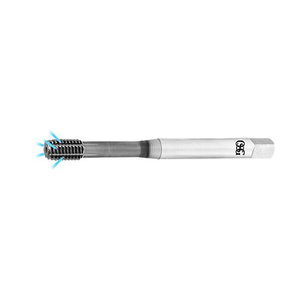

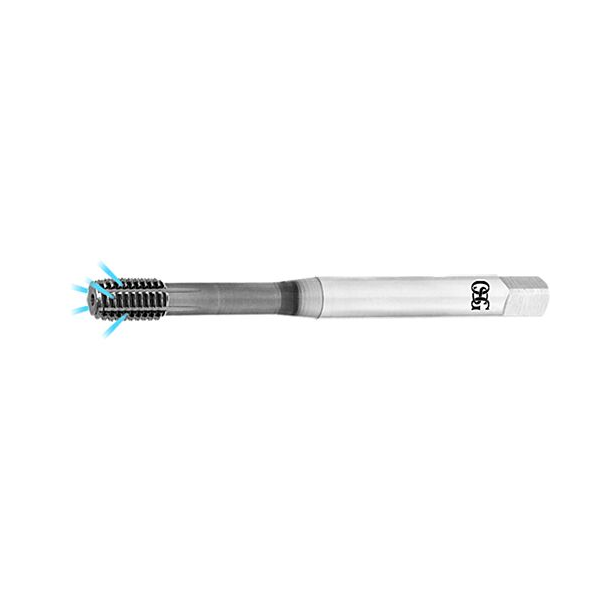

M36 x 4 S-OIL-XPF Thread Forming Tap Through Coolant TiCN Coated For General Use - OSG
OSG-48071294
S-OIL-XPF - M36 x 4
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- Side through coolant
| Thread Type | M |
| Thread Diameter (TD) | 36mm |
| Pitch (TP) | 4mm |
| Functional Length (LF) | 200mm |
| Thread Length (THLGTH) | 24mm |
| Shank Diameter (DCON) | 28mm |
| Drive Size (DRVS) | 22mm |
| Number of Flutes (NOF) | 8 |
| Pre-machined Hole Diameter (PHD) | 33.80 ~ 34.01 |
| Type | 2 |
| DIN | DIN 2174 |
