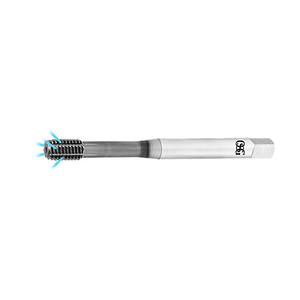

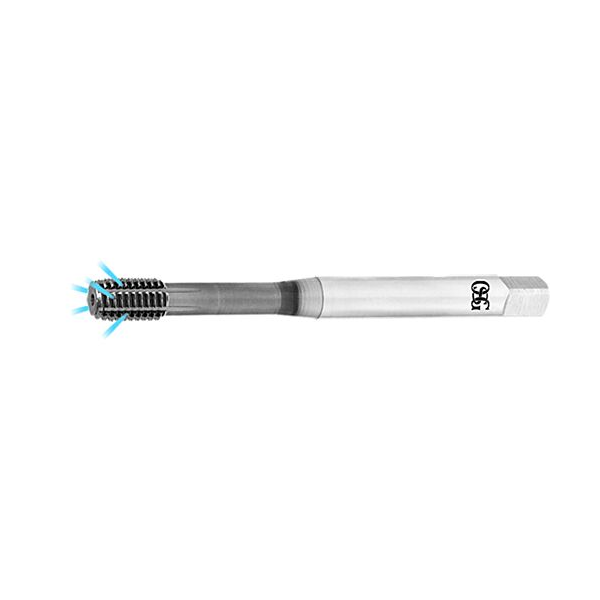

M42 x 4.5 S-OIL-XPF Thread Forming Tap Through Coolant TiCN Coated For General Use - OSG
OSG-48071314
S-OIL-XPF - M42 x 4.5
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- Side through coolant
| Thread Type | M |
| Thread Diameter (TD) | 42mm |
| Pitch (TP) | 4.5mm |
| Functional Length (LF) | 200mm |
| Thread Length (THLGTH) | 27mm |
| Shank Diameter (DCON) | 32mm |
| Drive Size (DRVS) | 24mm |
| Number of Flutes (NOF) | 9 |
| Pre-machined Hole Diameter (PHD) | 39.52 ~ 39.73 |
| Type | 2 |
| DIN | DIN 2174 |
