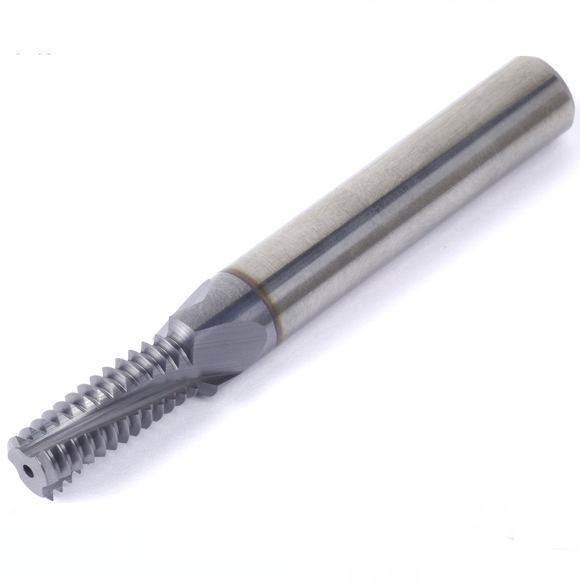

M4x0.7-1.5xDo - 0.7mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)

104-00049

EW Equipment

  • £106.00

Only 5 left!

Thread Milling TM Solid Carbide HeliCool IN 0.7 mm ISO Shank Diameter 4 (mm) Cutting Diameter 3.15 (mm) Tool Overhang 6.65 (mm) VTH Grade

  • For Internal Machining
  • For Metric threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micro grain Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes

Thread Standard ISO Metic
Pitch 0.7mm
EXT/INT IN
Coolant Yes
L 6.65mm
L1 6.65mm
Le 6.65mm
Cutting Dia 3.15mm
Z 3
Zt 9
Grade VTH
Coating TiCN
Description HC04031L06-I0.70ISOTMVTH
Shank Dia 4mm
