M5x0.8-2xDo - 0.8mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex) - Precision Engineering Tools EW Equipment

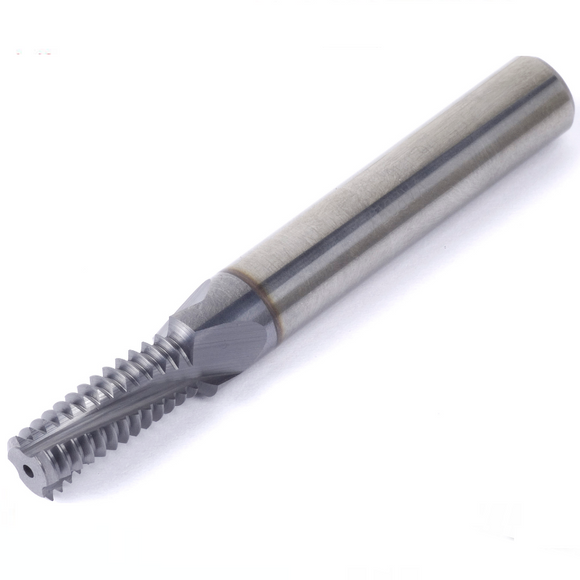

M5x0.8-2xDo - 0.8mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)

104-00010

EW Equipment

  • £106.00

Only 5 left!

Thread Milling TM Solid Carbide HeliCool IN 0.8 mm ISO Shank Diameter 4 (mm) Cutting Diameter 3.9 (mm) Tool Overhang 10.8 (mm) VTH Grade

  • For Internal Machining
  • For Metric threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micro grain Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes

Thread Standard ISO Metic
Pitch 0.8mm
EXT/INT IN
Coolant Yes
L 10.8mm
L1 10.8mm
Le 10.8mm
Cutting Dia 3.9mm
Z 3
Zt 13
Grade VTH
Coating TiCN
Description HC04039L10-I0.80ISOTMVTH
Shank Dia 4mm
