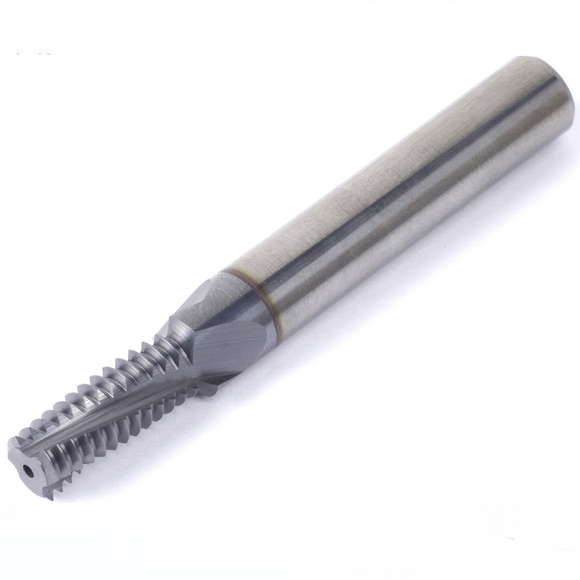

M5x0.8-3xDo - 0.8mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00353
Thread Milling TM Solid Carbide HeliCool IN 0.8 mm ISO Shank Diameter 4 (mm) Cutting Diameter 3.9 (mm) Tool Overhang 15.6 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | ISO Metic |
| Pitch | 0.8mm |
| EXT/INT | IN |
| Coolant | Yes |
| L | 15.6mm |
| L1 | 15.6mm |
| Le | 15.6mm |
| Cutting Dia | 3.9mm |
| Z | 3 |
| Zt | 19 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC04039L15-I0.80ISOTMVTH |
| Shank Dia | 4mm |
104-00353 M5X0.8-3XDO - 0.8MM PITCH METRIC HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
