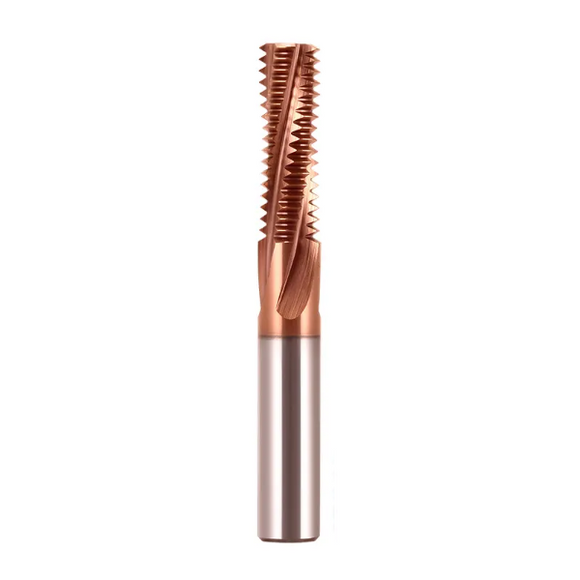

1.0mm Pitch - M6 x 1.0 Carbide Metric Thread Mill TiXco Coated

TMC-M6x1.0

EW Equipment

£35.99

M6 x 1.0 Metric Coarse

Soild Carbide Metric Thread Mill

TiXCo Coating : TiXCo is a nACo based coating with a top layer of Titanium Silicon Nitride.

- Very hard coating with a low coefficient of friction.

METRIC COARSE SIZE	PITCH	CUTTER DIA	THREAD LENGTH	SHANK DIA	OAL
M3 X 0.5	0.5MM	2.4MM	5.5MM	4MM	57MM
M4 X 0.7	0.7MM	3.7MM	8.2MM	4MM	57MM
M5 X 0.8	0.8MM	4.0MM	10MM	4MM	57MM
M6 X 1.0	1.0MM	4.8MM	11.8MM	6MM	57MM
M8 X 1.25	1.25MM	6.0MM	16MM	6MM	63MM
M10 X 1.5	1.5MM	7.9MM	19.2MM	8MM	63MM
M12 X 1.75	2.0MM	9.4MM	24MM	10MM	74MM

1.0mm Pitch - M6 x 1.0 Carbide Metric Thread Mill TiXco Coated

METRIC COARSE SIZE

PITCH

CUTTER DIA

THREAD LENGTH

SHANK DIA

OAL

M3 X 0.5

0.5MM

2.4MM

5.5MM

4MM

57MM

M4 X 0.7

0.7MM

3.7MM

8.2MM

4MM

57MM

M5 X 0.8

0.8MM

4.0MM

10MM

4MM

57MM

M6 X 1.0

1.0MM

4.8MM

11.8MM

6MM

57MM

M8 X 1.25

1.25MM

6.0MM

16MM

6MM

63MM

M10 X 1.5

1.5MM

7.9MM

19.2MM

8MM

63MM

M12 X 1.75

2.0MM

9.4MM

24MM

10MM

74MM
