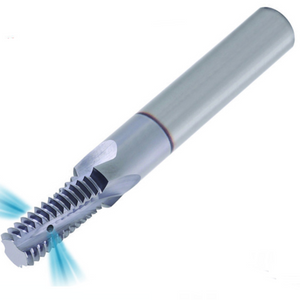

M6x1.0-2xDo - 1.0mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00001
Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 1 mm ISO Shank Diameter 6 (mm) Cutting Diameter 4.8 (mm) Tool Overhang 12.5 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
| Thread Standard | ISO Metic |
| Pitch | 1.0mm |
| EXT/INT | IN |
| Coolant | Yes |
| L | 12.5mm |
| L1 | 12.5mm |
| Le | 12.5mm |
| Cutting Dia | 4.8mm |
| Z | 3 |
| Zt | 12 |
| Grade | VTH |
| Coating | TiCN |
| Description | HCR06048L12-I1.00ISOTMVTH |
| Shank Dia | 6mm |
106-00001 M6X1.0-2XDO - 1.0MM PITCH METRIC HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
