M7 x 0.75 S-XPF Metric Fine Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48030160
S-XPF - Metric Fine - M7 x 0.75
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium

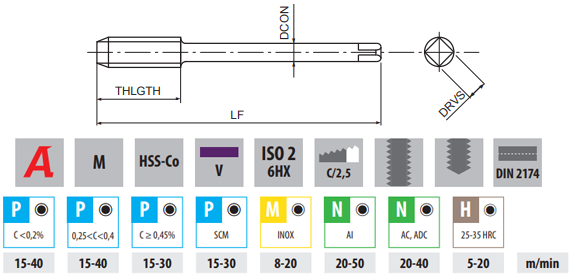

| Thread Type | MF |
| Thread Diameter (TD) | 7mm |
| Pitch (TP) | 0.75mm |
| Functional Length (LF) | 80mm |
| Thread Length (THLGTH) | 8mm |
| Shank Diameter (DCON) | 7mm |
| Drive Size (DRVS) | 5.5mm |
| Number of Flutes (NOF) | 5 |
| Pre-machined Hole Diameter (PHD) | 6.65 ~ 6.71 |
| DIN | DIN 2174 |
