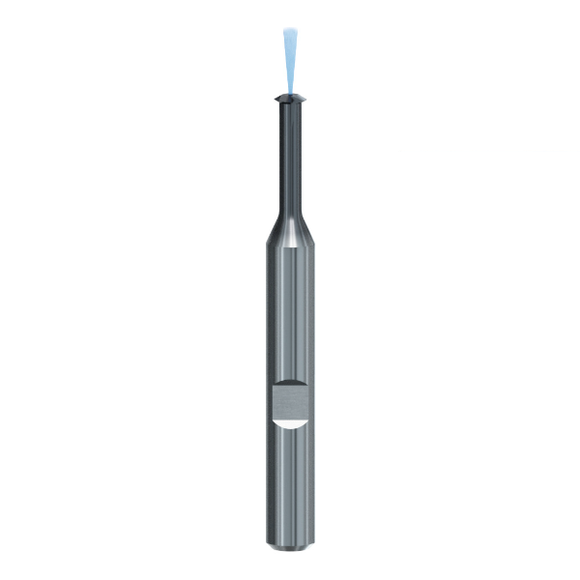

M8 x 0.43-1.25 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken

M8 x 0.43-1.25 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken

GF27310A.0080

EW Equipment

  • £137.00


ZGF-MULTI 3xD M, MF

Machining of countersunk chamfer and internal thread.

  • From thread size UNC 5/16 / UNF 5/16.
  • Pre-drilled taphole necessary.
  • Chamfering of tap hole with face bevel possible.
  • Tool for several dimensions with corrected thread profile.
  • Independent of pitch.
  • For internal threads.
  • IKZ coolant supply.

d1 M8
Pitch (mm) 0.43-1.25
dF 6.5mm
d2 8mm
l1 65mm
l3 25.3mm
l4 36mm
Z 5
