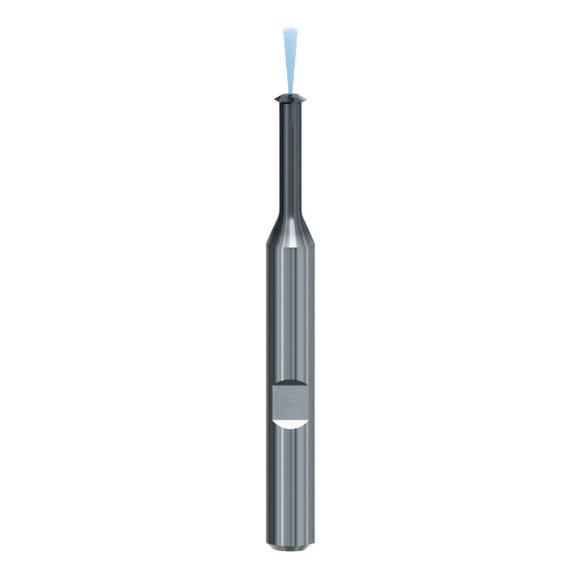

M8 x 0.43-1.5 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter (Flatted Shank) - Emuge Franken
GF25310A.0080
ZGF-MULTI 2xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size M8.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- IKZ coolant supply.
| d1 | M8 |
| Pitch (mm) | 0.43-1.5 |
| dF | 6.5mm |
| d2 | 8mm |
| l1 | 62mm |
| l3 | 20.6mm |
| l4 | 36mm |
| Z | 5 |
