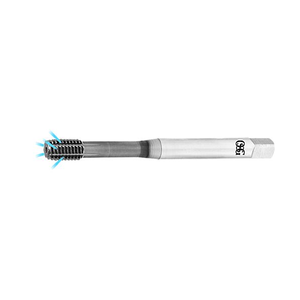

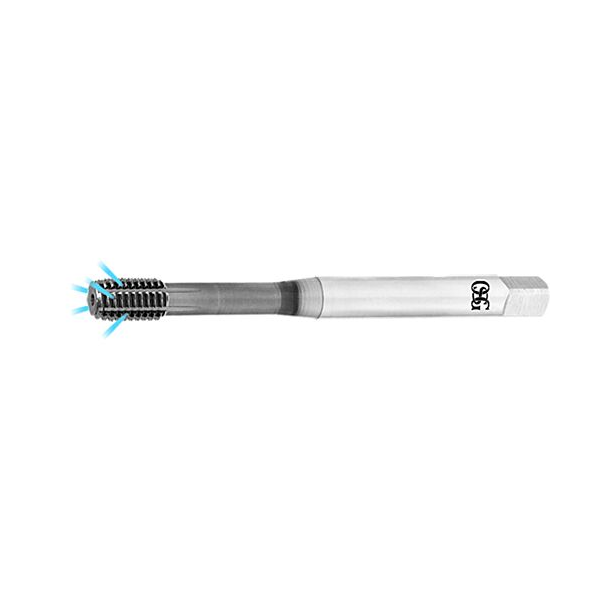

M8 x 1.25 S-OIL-XPF 6GX Oversize 6G Thread Forming Tap Through Coolant TiCN Coated For General Use - OSG
OSG-48293161
S-OIL-XPF 6GX - M8 x 1.25
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- For 6G internal thread tolerance, side through coolant
| Thread Type | M |
| Thread Diameter (TD) | 8mm |
| Pitch (TP) | 1.25mm |
| Oversize | 0.0280mm |
| Functional Length (LF) | 90mm |
| Neck Length (LU) | 35mm |
| Shank Diameter (DCON) | 8mm |
| Drive Size (DRVS) | 6.2mm |
| Number of Flutes (NOF) | 5 |
| Pre-machined Hole Diameter (PHD) | 7.40 ~ 7.47 |
| Type | 1 |
| DIN | DIN 2174 |
