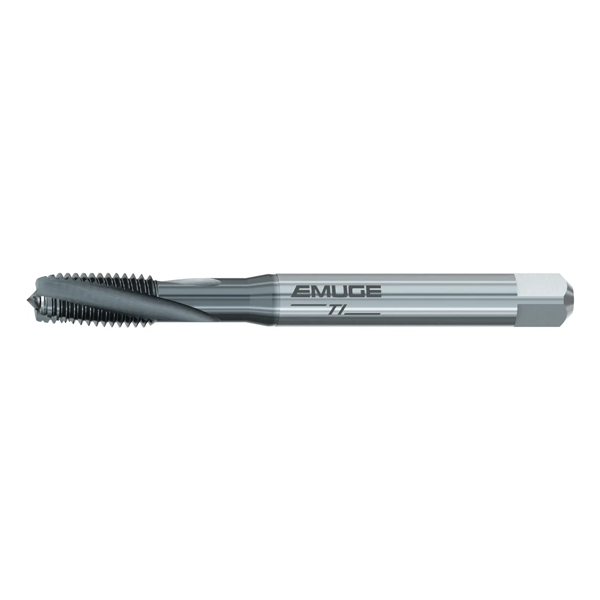

MJ 10 x 1.25 - Emuge Spiral Flute 4HX Tolerance TI Tap TICN Coated
B0459611.1236
MJ 10 x 1.25 - SF - TI - TICN
HSSE taps for applications in titanium.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

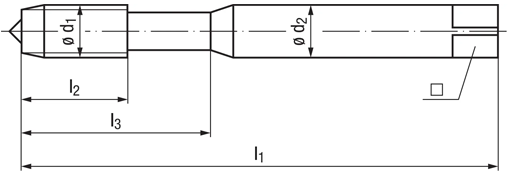

| Thread | MJ |
| Nominal Diameter (d1) |
10mm |
| Pitch | 1.25mm |
| Coolant Supply | Without |
| Geometry | TI |
| Shank Diameter (d2) | 10mm |
| OAL (l1) | 100mm |
| Length of cutting edge (l2) | 18mm |
| Usable Length (l3) | 39mm |
| Square ■ | 8mm |
| Tap hole diameter | 8.9mm |
MJ 10 X 1.25 - EMUGE SPIRAL FLUTE 4HX TOLERANCE TI TAP TICN COATED
