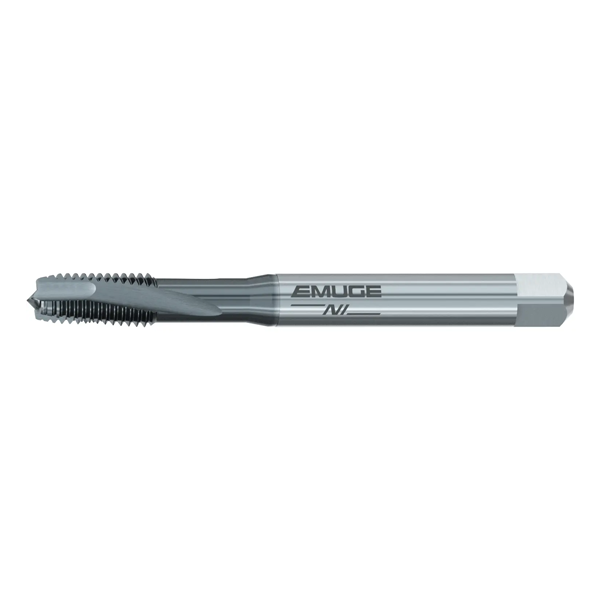

MJ 10 x 1.5 - Emuge Spiral Flute 4HX Tolerance NI HSSE-PM Tap TICN Coated
B438J411.2308
MJ 10 x 1.5 - SF - NI - PM - TICN
HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- DIN 371
- Chamfer Form C
- Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.


| Thread | MJ |

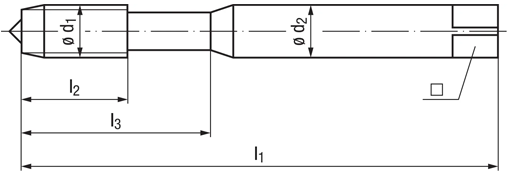

| Nominal Diameter (d1) |
10mm |
| Pitch | 1.5mm |
| Coolant Supply | Without |
| Geometry | NI |
| Shank Diameter (d2) | 10mm |
| OAL (l1) | 100mm |
| Length of cutting edge (l2) | 22mm |
| Usable Length (l3) | 39mm |
| Square ■ | 8mm |
| Tap hole diameter | 8.6mm |
MJ 10 X 1.5 - EMUGE SPIRAL FLUTE 4HX TOLERANCE NI HSSE-PM TAP TICN COATED
